Fire Resistant Cables

FIRECEL FIRE RESISTANT CABLES

Cables FIRECEL SR are designed to work also during the fire. The emission of smoke in this situation is free from corrosive gas and they have low density to guarantee people safety and protection for equipment.

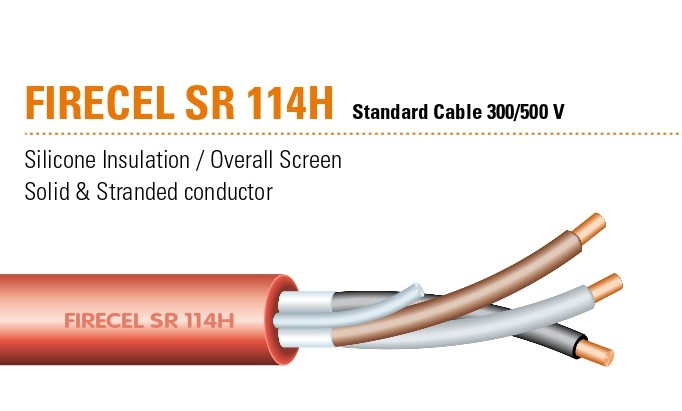

SR114H

Applications FIRECEL SR 114H are primarily intended for use in fire detection and fire alarm systems, emergency lighting circuits, or if cables need to properly operate when fire resistance improvement is required. Typical applications are:
– BS 5839-1 for enhanced fire-resistant cables in fire detection and fire alarm systems for building.
– BS 5839-8 for voice alarm systems.
– BS 5839-9 for emergency voice communication systems.
– BS 8519 for fire-resistant control cable systems for life safety and fire-fighting application – Category 2.

**Operating temperature**: -40°C to +90°C
**Minimum bending radius**: 6 times the outer diameter.

**Colour code up to 4 cores to HD 308**
– 2 cores: blue – brown
– 3 cores: brown – black – grey
– 4 cores: blue – brown – black – grey
– 7 cores:
– Centre: brown
– 1st layer: brown – black – 4 cores white
– 12 cores:
– Centre: brown – black – white
– 1st layer: brown – black – 7 cores white
– 19 cores:
– Centre: brown
– 1st layer: brown – black – 4 cores white
– 2nd layer: brown – black – 10 cores white

(On request, the cores can be one colour only, identified by printed numbers.)

**Applicable Standards**
– Basic design: BS 7629-1
– Fire resistant: BS 6387 (cat. C-W-Z), EN 50200 (class PH30 – PH60 – PH120), EN 50200 Annex E
– Flame retardant: EN 60332-1-2
– Acid gas emission: EN 50267-2-1
– Smoke density: EN 61034-2

**Cable construction**
– **Conductors**: Plain annealed copper wire, solid class 1 or stranded class 2 according to EN 60228.
– **Insulation**: High-performance fire-resistant silicone rubber type EI2 to BS EN 50363-1.
– **Cabling**: Insulated cores are cabled together.
– **Overall screen**: Aluminium/polyester tape.
– **Circuit protective conductor**:
– Uninsulated tinned copper conductor of the same section and class as the insulated conductors in the 2-, 3-, and 4-core cables.
– Drain wire of 0.5 mm² tinned copper conductor is provided in cables with more than 4 conductors.
– **Outer sheath**: LSZH thermoplastic material type LTS3 to BS 7655-6.1. Colour red or white (other colours on request).

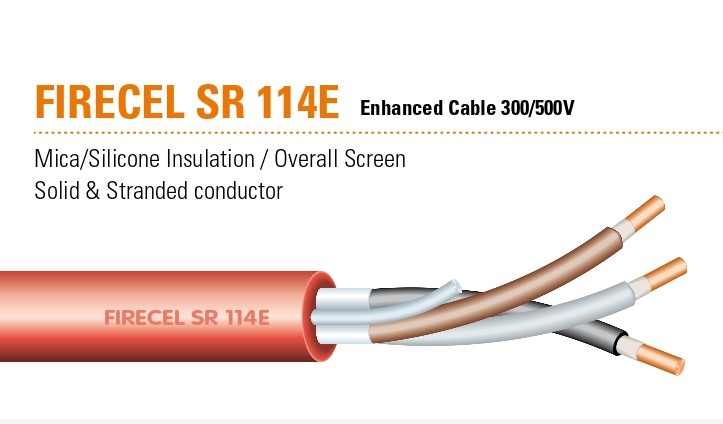

SR114E

Applications FIRECEL SR 114E are primarily intended for use in fire detection and fire alarm systems, emergency lighting circuits, or if cables need to properly operate when fire resistance improvement is required. Typical applications are:
– BS 5839-1 for enhanced fire-resistant cables in fire detection and fire alarm systems for building.
– BS 5839-8 for voice alarm systems.
– BS 5839-9 for emergency voice communication systems.
– BS 8519 for fire-resistant control cable systems for life safety and fire-fighting application – Category 2.

**Operating temperature**: -40°C to +90°C
**Minimum bending radius**: 6 times the outer diameter.

**Colour code up to 4 cores to HD 308**
– 2 cores: blue – brown
– 3 cores: brown – black – grey
– 4 cores: blue – brown – black – grey
– 7 cores: – Centre: brown – 1st layer: brown – black – 4 cores white
– 12 cores: – Centre: brown – black – white – 1st layer: brown – black – 7 cores white
– 19 cores: – Centre: brown – 1st layer: brown – black – 4 cores white – 2nd layer: brown – black – 10 cores white
(On request, the cores can be one colour only, identified by printed numbers.)

**Applicable Standards**
– Basic design: BS 7629-1
– Fire resistant: BS 6387 (cat. C-W-Z), EN 50200 (class PH30 – PH60 – PH120), EN 50200 Annex E
– Flame retardant: EN 60332-1-2
– Acid gas emission: EN 50267-2-1
– Smoke density: EN 61034-2

**Cable construction**
– **Conductors**: Plain annealed copper wire, solid class 1 or stranded class 2 according to EN 60228.
– **Insulation**: Mica/Glass fire-resistant tape covered by high-performance fire-resistant silicone rubber type EI2 to BS EN 50363-1.
– **Cabling**: Insulated cores are cabled together.
– **Overall screen**: Aluminium/polyester tape.
– **Circuit protective conductor**: – Uninsulated tinned copper conductor of the same section and class as the insulated conductors in the 2-, 3-, and 4-core cables. – Drain wire of 0.5 mm² tinned copper conductor is provided in cables with more than 4 conductors.
– **Outer sheath**: LSZH thermoplastic material type LTS3 to BS 7655-6.1. Colour red or white (other colours on request).

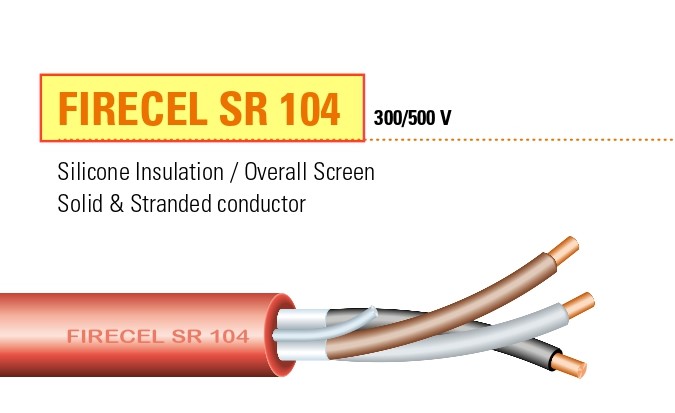

SR104

APPLICATIONS FIRECEL SR 104 are primarily intended for general application. Typical applications are: Fire detection and fire alarm systems for building, voice alarm, emergency voice communication, emergency lighting and central battery systems.

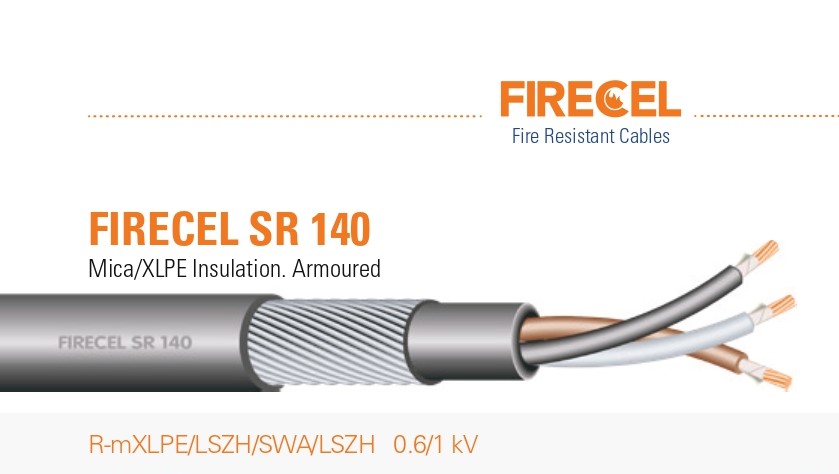

SR140

APPLICATIONS Power supply and signal transmission, indoors or outdoors even wet environment. For fixed laying in free air, in pipe or conduit, on masonry and metal structures or suspended. In places where in case of fire people are exposed to serious risks due to the emission of smoke, toxic and corrosive gases and where you want to avoid damage to facilities, equipment, goods. Suitable for feeding of: emergency exits, alarm signals, warning of smoke or gas, escalators. Suitable for laying underground direct or indirect
